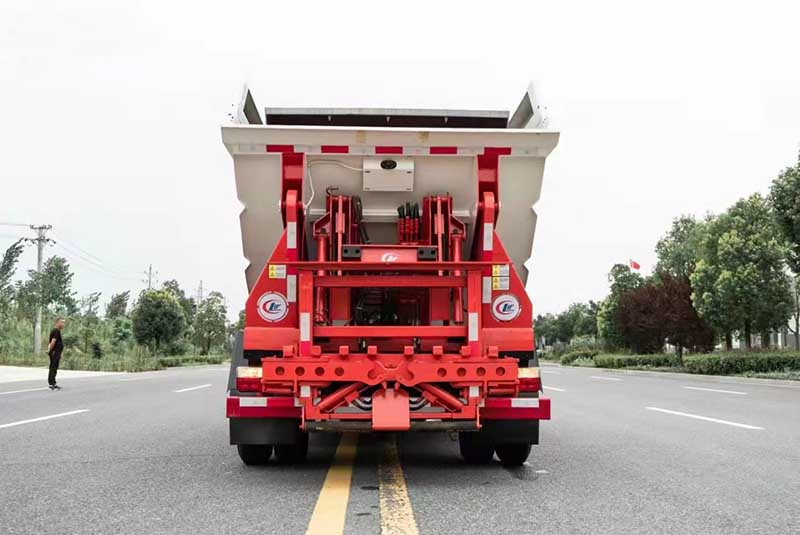

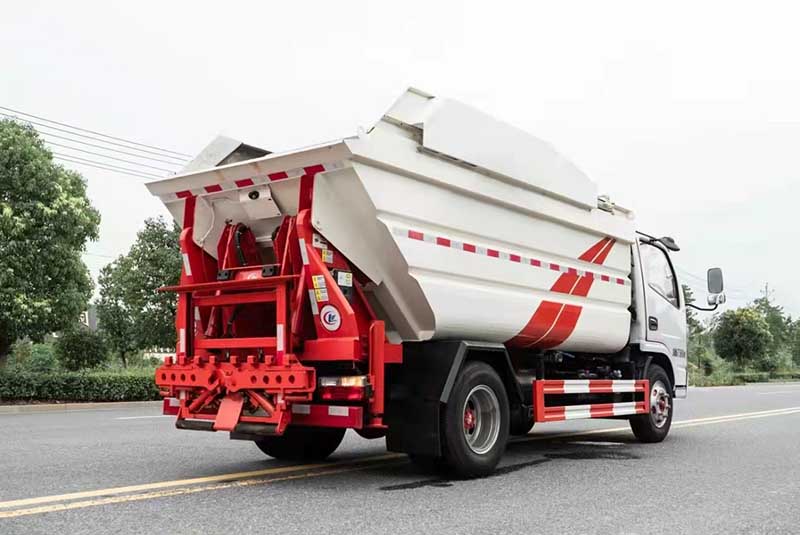

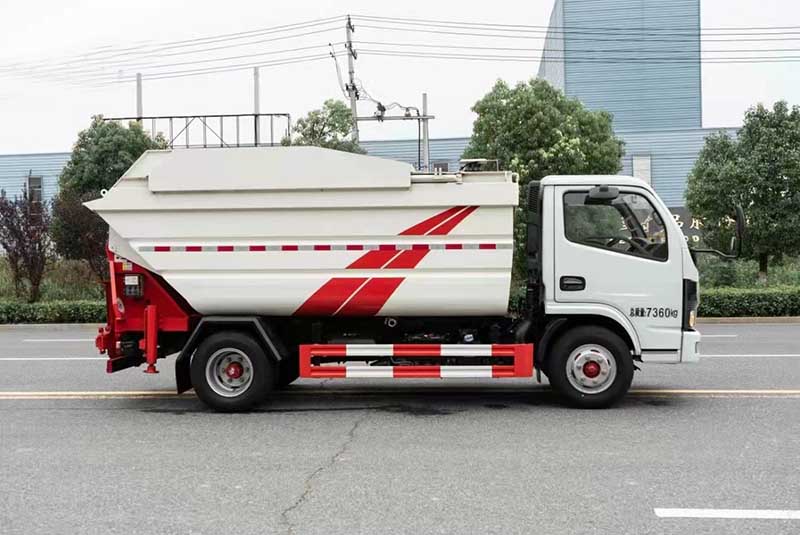

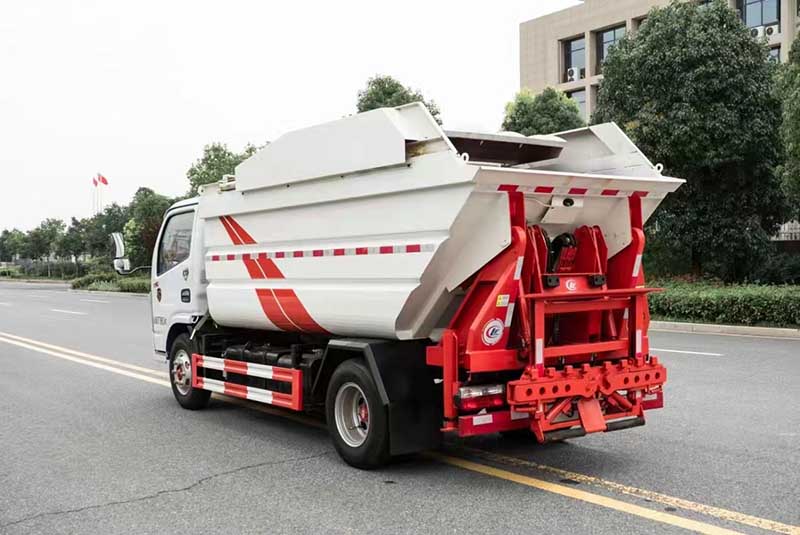

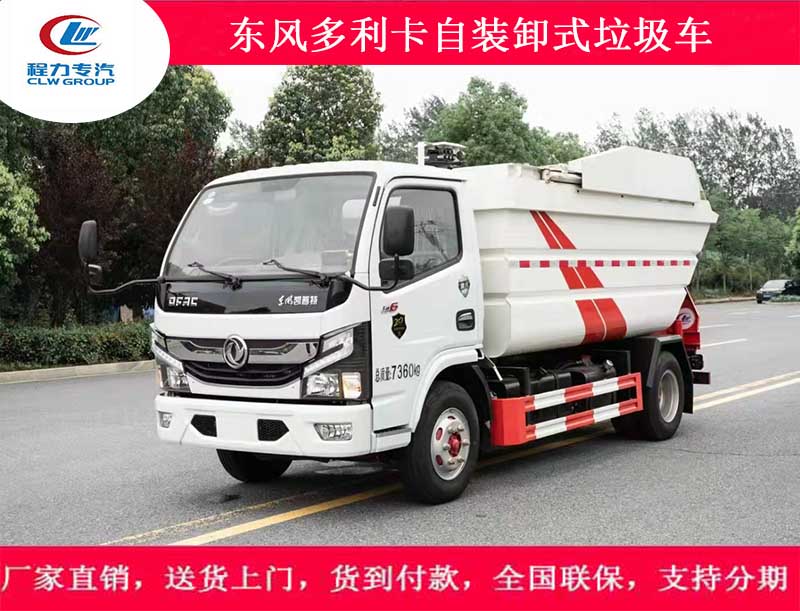

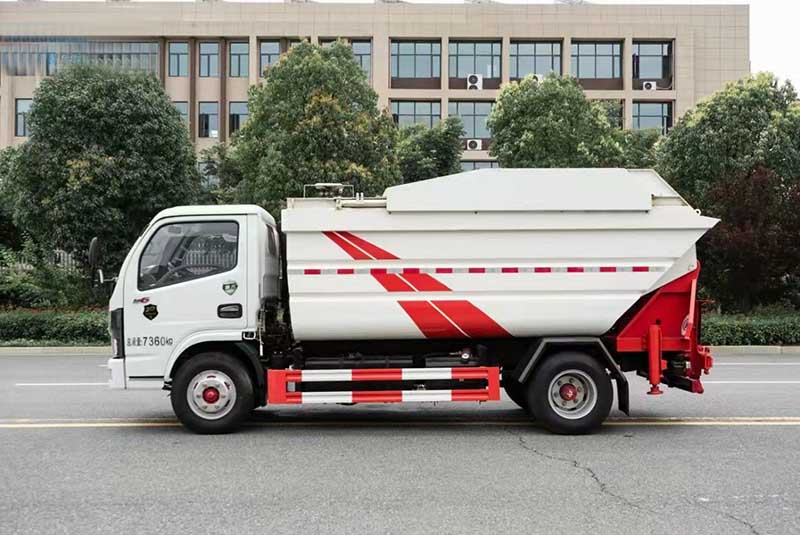

东风小多利卡后挂桶自装卸式垃圾车 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:32740
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
东风小多利卡后挂桶自装卸式垃圾车 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CLW5070ZZZB4??Model technical parameters
Name: CLW5070ZZZB4 Exterior size(mm): 5600×2000×2650
Chassis: BJ1073VEJEA-A Container size(mm): ××
Total weight :(kg) 7495 Approach angle/ Departure angle(° ) 23/21
Payload:(kg) 3600,3665 Front suspension/rear suspension(mm): 1085/1155
Kerb Mass:(kg) 3700(Kg) Max Speed(km/h): 95
Chassis parameters
Chassis: BJ1073VEJEA-A Axle weight: 2850/4645
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 3360 Fronttread(mm): 1415,1525
Max people in cab: 3,2 Rear tread(mm): 1485,1525
Number of tires: 6 Number of spring axle: 4/6+7
Tire Type: 7.00-16,7.00R16,6.50-16,6.50R16
introduction: 额定载质量(kg) : 3600,3665与驾驶室准乘人数(人)3,2一一对应;随底盘选装驾驶室。防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护均采用焊接连接,后部防护断面尺寸(mm):200×50,后部防护离地高度(mm):450。采用YN27CRD1,CA4DC2-10E4,CY4T75-CE4,4B2-95C40发动机,对应油耗值 (L/100km) :18.6,18.8,18.6,18.9。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
CA4DC2-10E4
CY4102-CE4F
YZ4DA2-40
4B2-95C40
YN33CRD2
YN27CRD1
YZ4DH1-40
CY4T75-CE4
4DW93-95E4
第一汽车集团公司
东风朝阳朝柴动力有限公司
潍柴动力扬州柴油机有限责任公司
安徽全柴动力股份有限公司
昆明云内动力股份有限公司
昆明云内动力股份有限公司
潍柴动力扬州柴油机有限责任公司
东风朝阳朝柴动力有限公司
一汽解放汽车有限公司无锡柴油机厂
3168
3856
3660
2545
3298
2672
2540
3707
2540
79
73
83
70
75
70
70
75
72
other parameters
Introduction:
more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
