CLW5070ZYST5??Model technical parameters | |||
Name: | CLW5070ZYST5 | Exterior size(mm): | 6490,6240×2050×2570 |
Chassis: | EQ1072GLJ | Container size(mm): | ×× |
Total weight :(kg) | 7350 | Approach angle/ Departure angle(° ) | 24/12 |
Payload:(kg) | 1805,1740 | Front suspension/rear suspension(mm): | 1070/2120,1070/1870 |
Kerb Mass:(kg) | 5415(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | EQ1072GLJ | Axle weight: | 2940/4410 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3300,3800 | Fronttread(mm): | 1506,1590,1750 |
Max people in cab: | 2,3 | Rear tread(mm): | 1530,1586,1650 |
Number of tires: | 6 | Number of spring axle: | 8/9+5,8/10+7,9/10+8 |
Tire Type: | 7.00-16,7.00R16,7.50-16,7.50R16 | ||

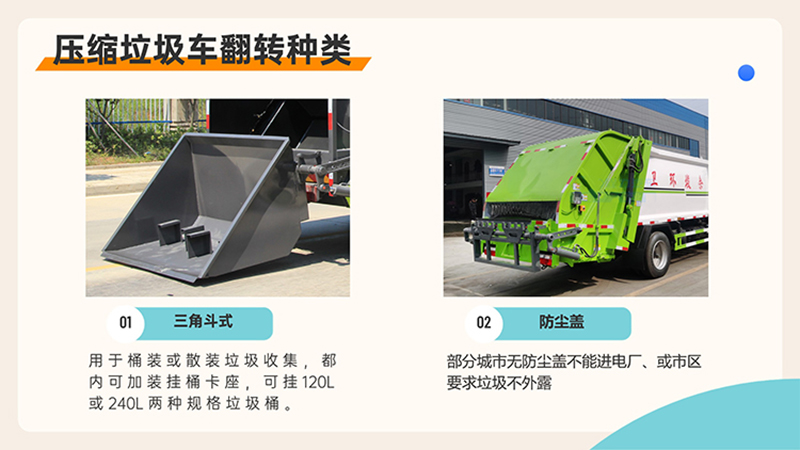

introduction: | 1、后部翻转样式选装垃圾斗装置,并选装无后翻转机构。选装无后翻转机构时该车总长为6240mm,对应后悬为1870mm。选装垃圾斗机构时该车总长为6490mm,对应后悬为2120mm。2、防护材料:Q235碳钢,连接方式:左右侧面防护采用焊接连接,后部防护由专用装置代替豁免。3、车辆颜色、文字喷涂及局部细节可变化。4、发动机与油耗值对关系为(L/km):CY4BK251/17.8,CY4BK451/17.8,YC4FA115-50/17.8。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
CY4BK251 CY4BK451 YC4FA115-50 |
东风朝阳朝柴动力有限公司 东风朝阳朝柴动力有限公司 广西玉柴机器股份有限公司 |
3856 3707 2982 |
96 86 85 |
other parameters |
Introduction: |

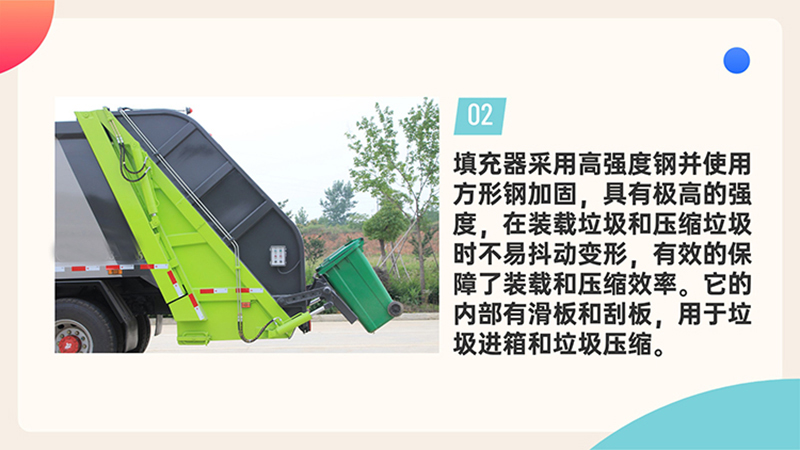

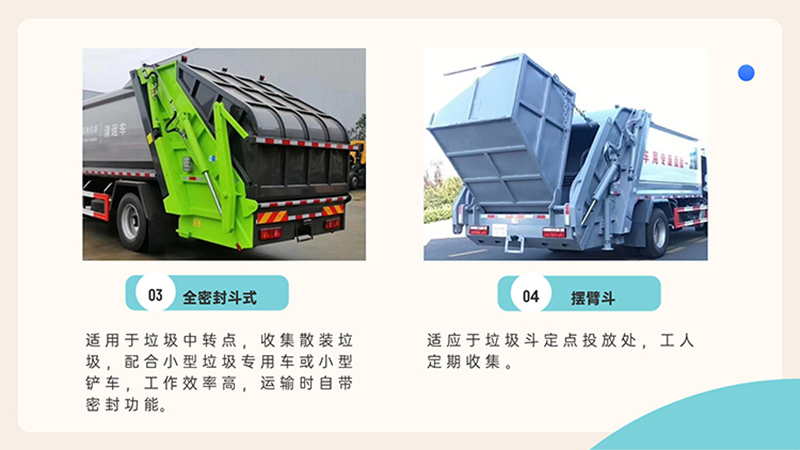

more Picture: |
※ Need more information or pictures?please contact us and we will provide best service!。 |
