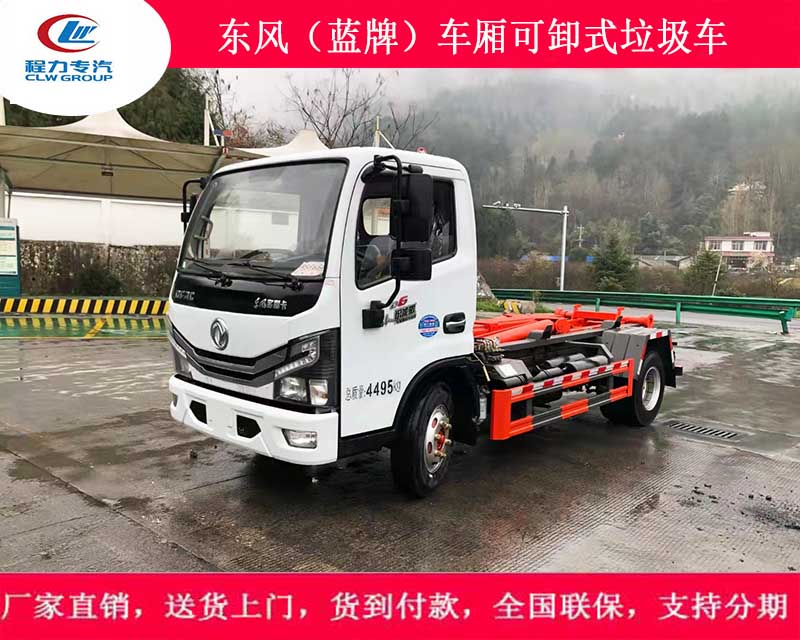

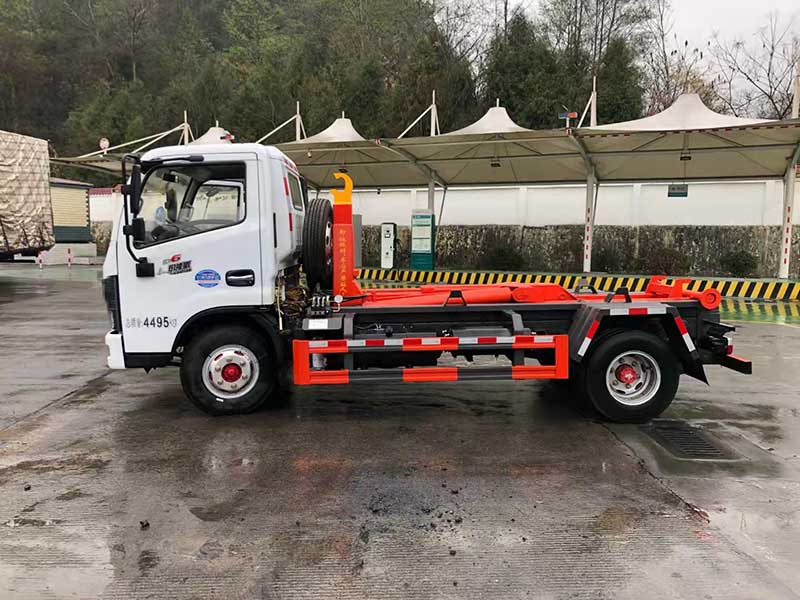

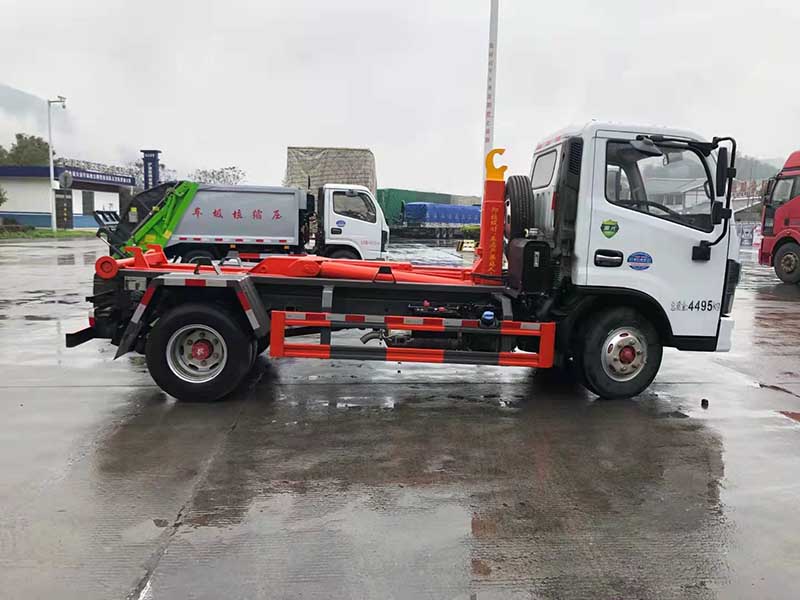

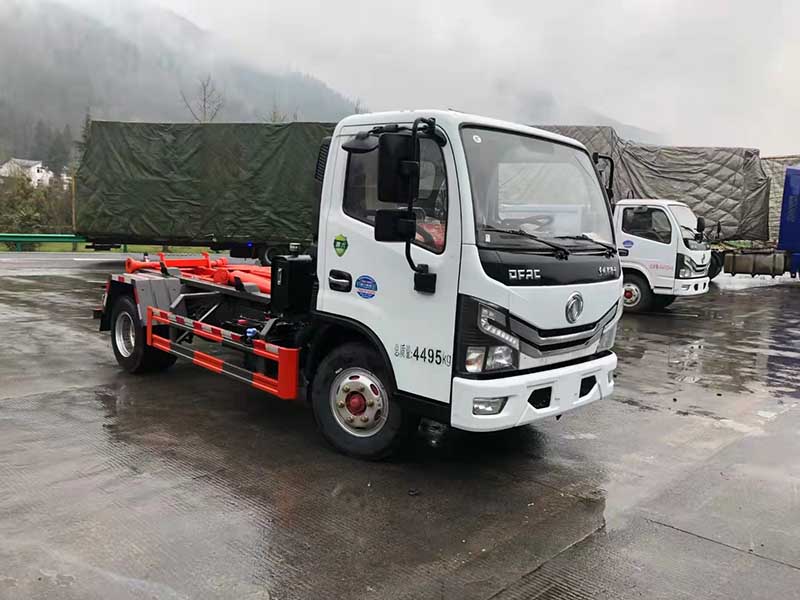

CLW5040ZXX4??Model technical parameters | |||
Name: | CLW5040ZXX4 | Exterior size(mm): | 4570×1780×2090 |
Chassis: | DFA1041SJ30D2 | Container size(mm): | ×× |
Total weight :(kg) | 4370 | Approach angle/ Departure angle(° ) | 26/25 |
Payload:(kg) | 2390 | Front suspension/rear suspension(mm): | 1120/950 |
Kerb Mass:(kg) | 1850(Kg) | Max Speed(km/h): | 95 |
Chassis parameters | |||
Chassis: | DFA1041SJ30D2 | Axle weight: | 1750/2620 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 2500,2600,2800 | Fronttread(mm): | 1412 |
Max people in cab: | 2 | Rear tread(mm): | 1366 |
Number of tires: | 6 | Number of spring axle: | 5/7+3,8/6+4 |
Tire Type: | 6.50-15 8PR,6.50R15 8PR,6.00-14 10PR,6.00R14 10PR | ||
introduction: | 选装新型前面罩;发动机: 4F20BTCI, SD4AW504U,对应油耗值分别为:12.2;12.6;驾驶室准乘人数2人时对应额定载质量为(kg)2390;防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护均采用焊接连接,后部防护断面尺寸(mm):120×50,后部防护离地高度(mm):450 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
4F20BTCI SD4AW504U |
常柴股份有限公司 江苏四达动力机械集团有限公司 |
1995 2270 |
50 50 |
other parameters |
Introduction: |
more Picture: |
※ Need more information or pictures?please contact us and we will provide best service!。 |
