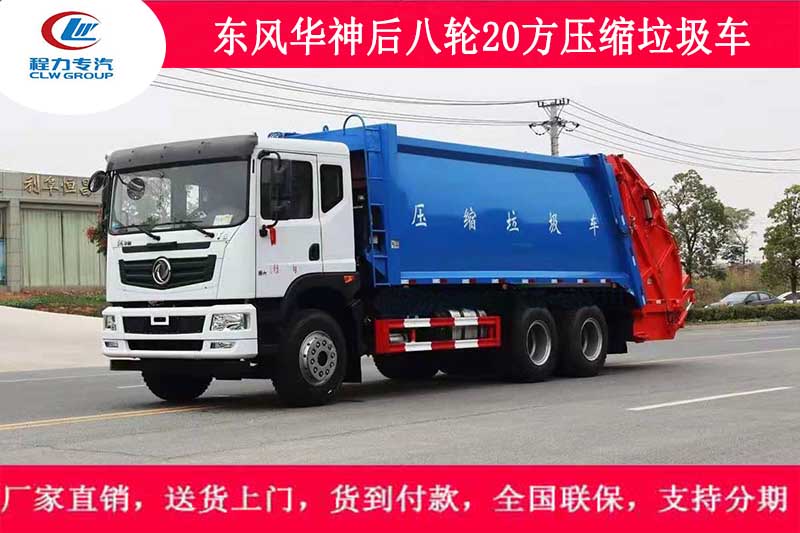

东风华神压缩式垃圾车 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:69192
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
东风华神压缩式垃圾车 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CLW5160ZYSS5??Model technical parameters
Name: CLW5160ZYSS5 Exterior size(mm): 8720,8470×2490×3250
Chassis: SX1168GP5 Container size(mm): ××
Total weight :(kg) 15800 Approach angle/ Departure angle(° ) 23/12
Payload:(kg) 6145 Front suspension/rear suspension(mm): 1450/2670,1450/2420
Kerb Mass:(kg) 9460(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: SX1168GP5 Axle weight: 5800/10000
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 4600,5000,5600 Fronttread(mm): 1770,1830,1950
Max people in cab: 3 Rear tread(mm): 1675,1810,1860
Number of tires: 6 Number of spring axle: 7/9+6,8/10+6,8/10+8,9/10+6,9/10+3,3/4+3,9/11+8,9/10+8
Tire Type: 9.00-20,9.00R20,10.00-20,10.00R20,10R22.5

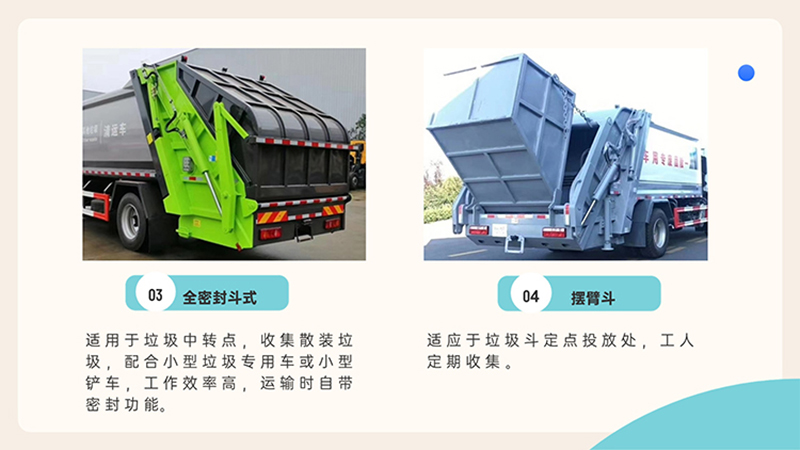

introduction: 1.随底盘选装驾驶室。 2.防护材料:Q235A碳钢,连接方式:左右侧面防护均采用焊接连接在副梁上,后部防护由专用装置代替豁免。3.ABS系统生产厂家:西安正昌电子有限责公司,型号:ZQFB-V. 4.车辆颜色、文字喷涂及局部细节可变化。5.该车有五种可选翻转样式,A:三角斗装置,B:挂桶装置,C:摆臂装置,D:大落地斗装置,E:无后翻转装置。当选择ABCD时,该车整车长(mm)/轴距(mm)/后悬(mm)的对应关系为: 8720/4600/2670;当选择E时,该车整车长(mm)/轴距(mm)/后悬(mm)的对应关系为:8470/4600/2420。6、仅采用发动机与油耗值对应关系为(L/100km):ISD180 50/27.36, WP6.220E50/27.73, ISD230 50/27.59, YC4EG160-50/27.82。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
YC4EG160-50
ISD180 50
ISD230 50
WP6.220E50
YC4EG185-50
ISB220 50
ISB190 50
YC6JA180-50
YC4E160-56
广西玉柴机器股份有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
潍柴(潍坊)中型柴油机有限公司
广西玉柴机器股份有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
广西玉柴机器股份有限公司
广西玉柴机器股份有限公司
4730
4500
6700
6750
4730
5900
5900
6870
4260
118
132
169
162
136
162
140
132
118
other parameters
Introduction:

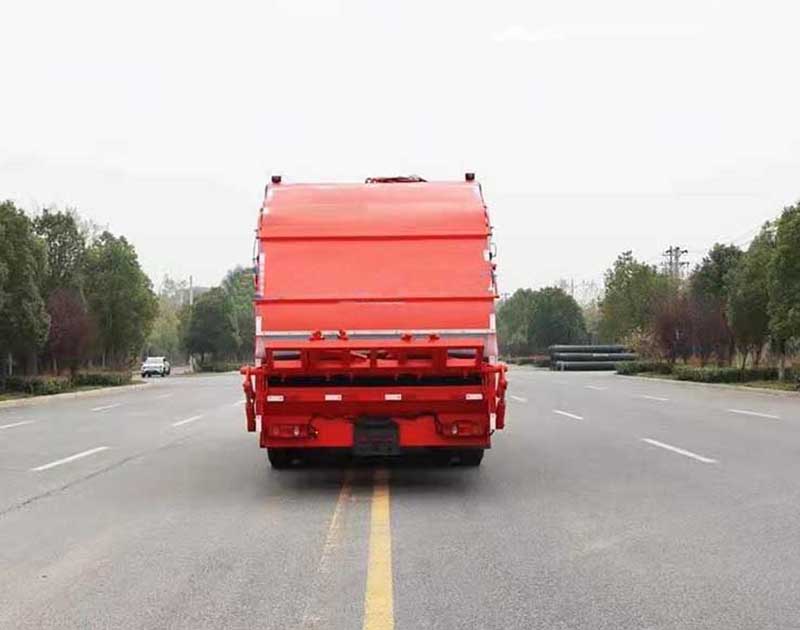

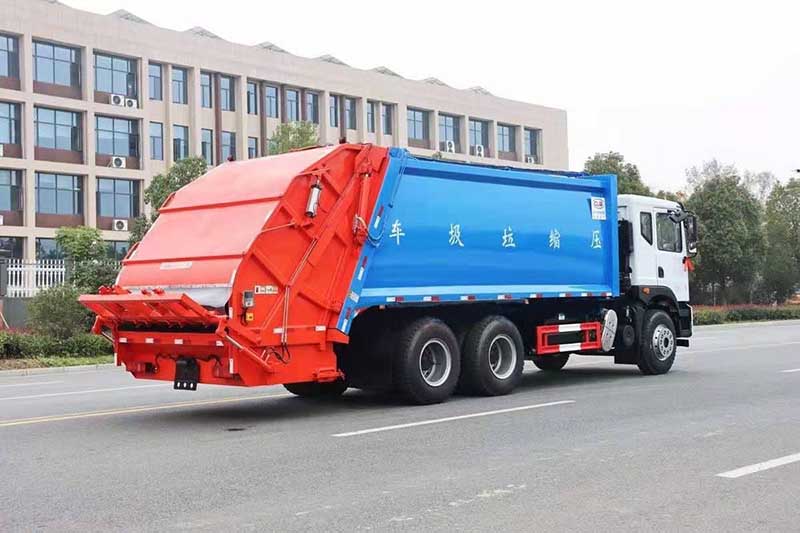

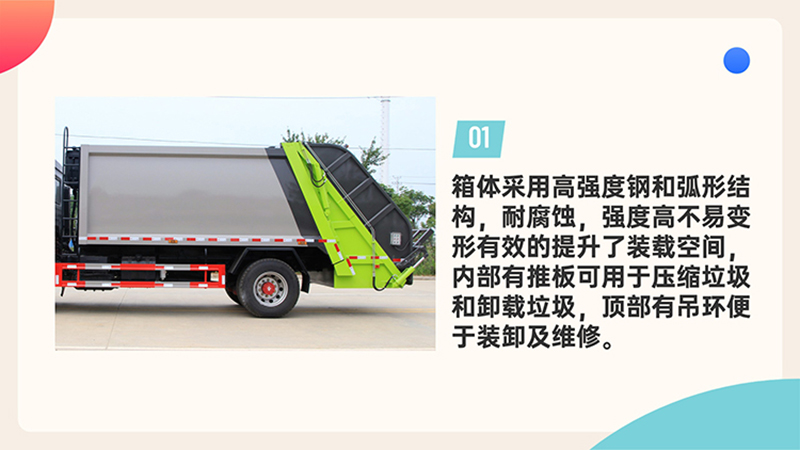

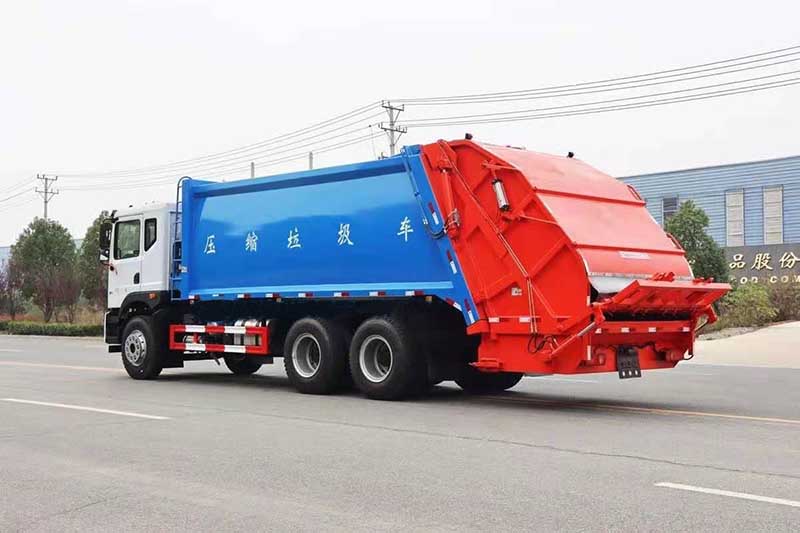

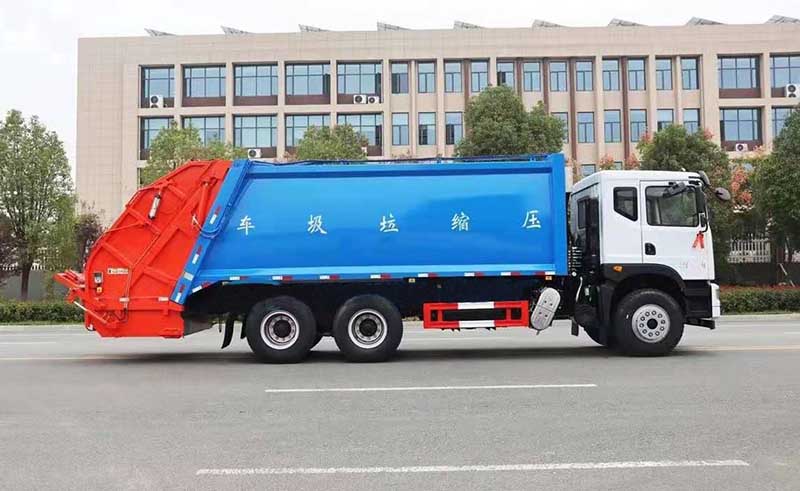

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
