蓝牌泔水车18727976517 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:37077
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
蓝牌泔水车18727976517 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
SLA5071TCAQL??Model technical parameters
Name: SLA5071TCAQL Exterior size(mm): 5700×1910×2560
Chassis: QL1070A1HAY Container size(mm): ××
Total weight :(kg) 7300 Approach angle/ Departure angle(° ) 24/30
Payload:(kg) 3110 Front suspension/rear suspension(mm): 1015/1325
Kerb Mass:(kg) 4060(Kg) Max Speed(km/h): 105
Chassis parameters
Chassis: QL1070A1HAY Axle weight: 2580/4720
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 3360 Fronttread(mm): 1504
Max people in cab: 2 Rear tread(mm): 1425
Number of tires: 6 Number of spring axle: 8/6+5
Tire Type: 7.00-16 14PR,7.00R16 14PR
introduction: 罐体有效容积:3.4立方米,介质: 餐厨垃圾,密度:950千克/立方米。罐体外形尺寸(长×直径)(mm):3636×1400。罐体前部1036mm的长度部分为推铲装置。侧、后防护装置材料材质:Q235;连接方式:侧防护焊接加螺栓联接,后防护螺栓联接,后部防护装置断面尺寸(宽×高)60×100(mm),后部防护离地高度490mm。随底盘选装加宽前保险杠。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
4KH1-TCG40 庆铃五十铃(重庆)发动机有限公司 2999 88
other parameters
Introduction:

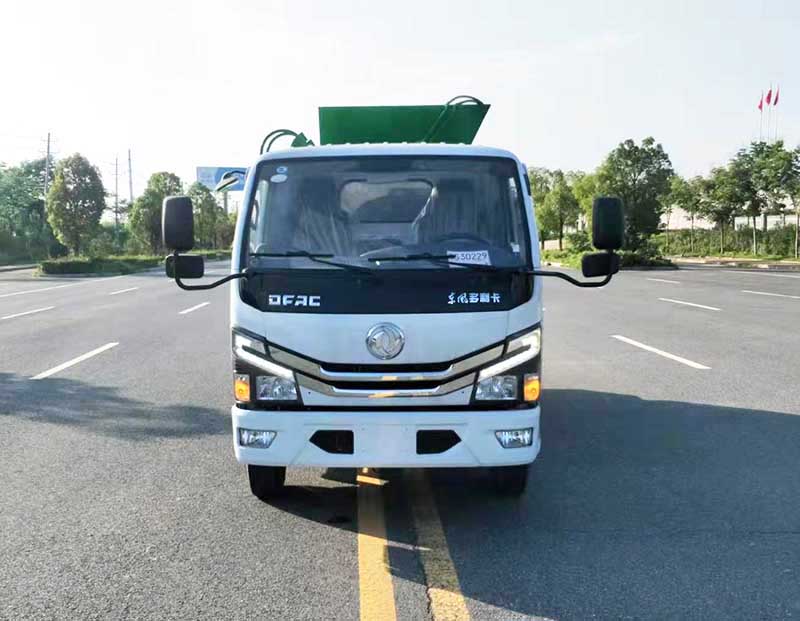

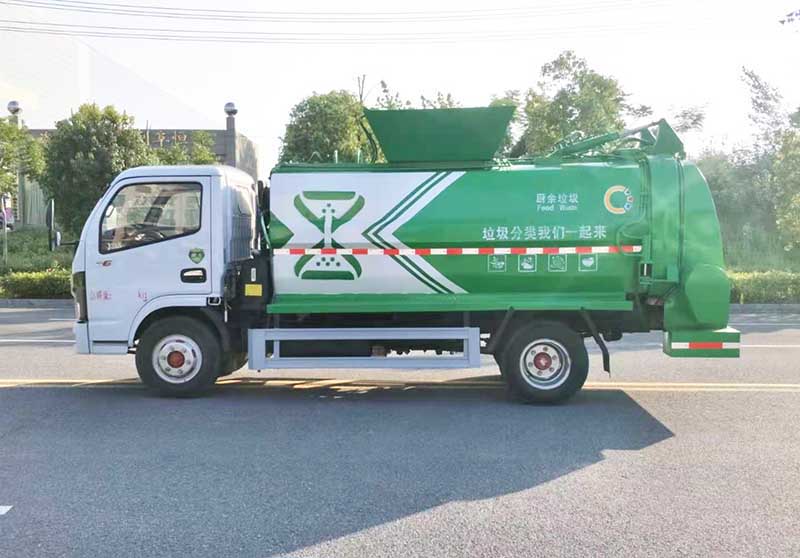

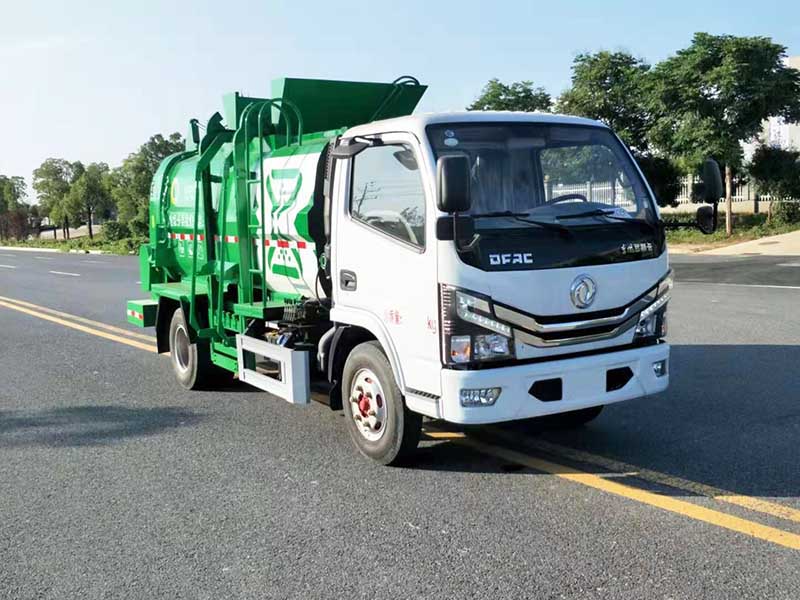

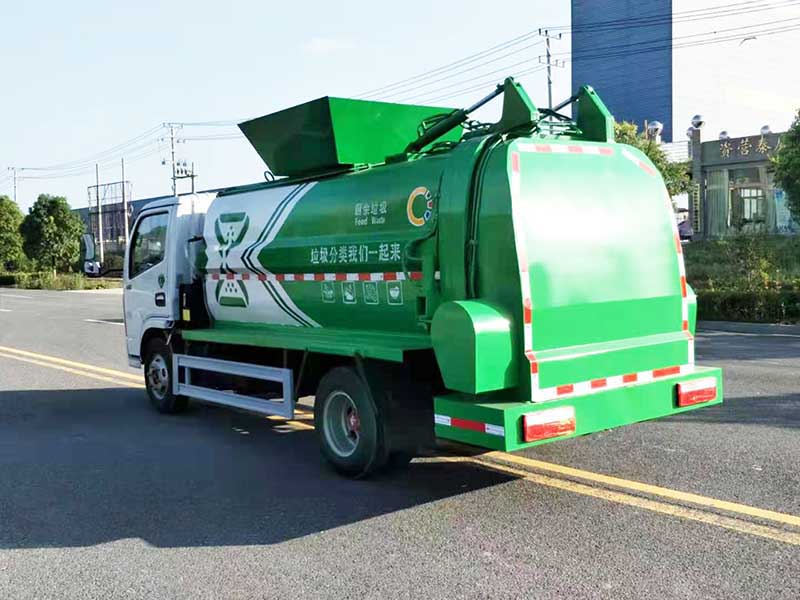

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
