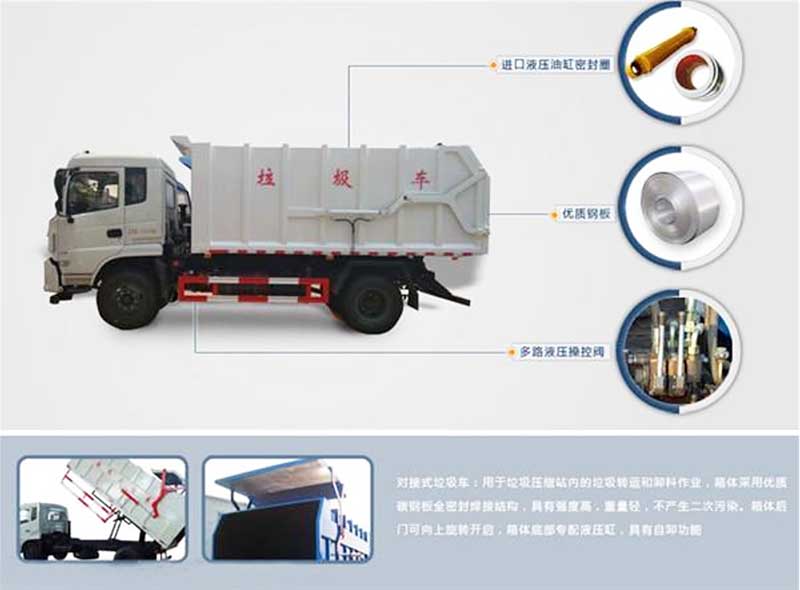

东风天锦压缩式对接垃圾车 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:52993
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
东风天锦压缩式对接垃圾车 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CLW5160ZDJT5??Model technical parameters
Name: CLW5160ZDJT5 Exterior size(mm): 7790,7240×2500×3200
Chassis: EQ1160GD5DJ Container size(mm): ××
Total weight :(kg) 15800 Approach angle/ Departure angle(° ) 23/16
Payload:(kg) 7605 Front suspension/rear suspension(mm): 1440/1850
Kerb Mass:(kg) 8000(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: EQ1160GD5DJ Axle weight: 5800/10000
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 3950,4500,5100,4700,4200,5600,5700 Fronttread(mm): 1900,1880,1810,1940
Max people in cab: 3 Rear tread(mm): 1860,1800,1800,1860
Number of tires: 6 Number of spring axle: 9/12+10,8/10+7,8/10+8,7/9+6,11/11+10
Tire Type: 10.00R20,10.00-20,9.00R20,9.00-20
introduction: 随底盘选装驾驶室。整车尺寸与轴距对应关系为(mm):7790/4500,7240/3950。防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护均采用焊接连接,后部防护断面尺寸(mm):120×50,后部防护离地高度(mm):500。ABS的型号:ABS-E 4S/4M,生产厂家:威伯科汽车控制系统()有限公司。文字喷涂位置和车辆颜色可变化。发动机对应油耗值(L/100km)为ISD180 50/26.8, YC6JA180-50/27.1。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
ISD180 50
YC6JA180-50
ISD190 50
ISB170 50
ISB190 50
ISB210 50
YC4E160-56
YC4S150-50
EQH180-52
东风康明斯发动机有限公司
广西玉柴机器股份有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
广西玉柴机器股份有限公司
广西玉柴机器股份有限公司
东风商用车有限公司
4500
6870
6700
5900
5900
5900
4260
3767
4752
132
132
144
125
140
155
118
110
132
other parameters
Introduction:

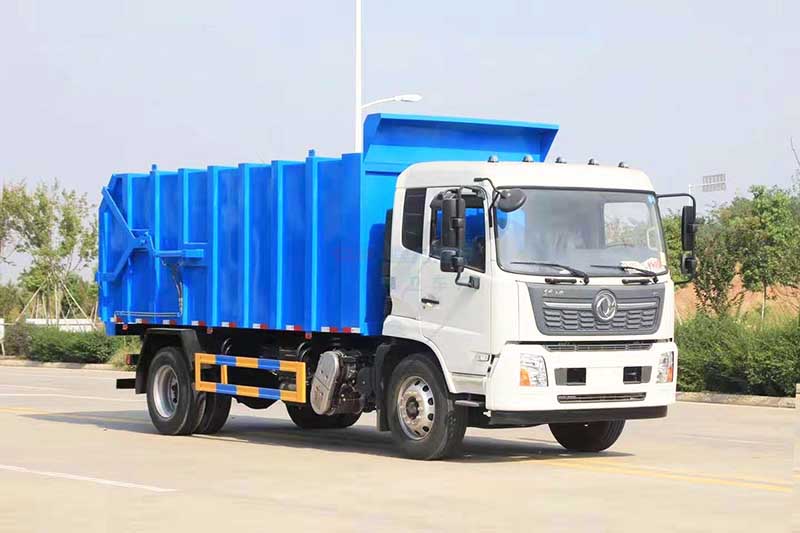

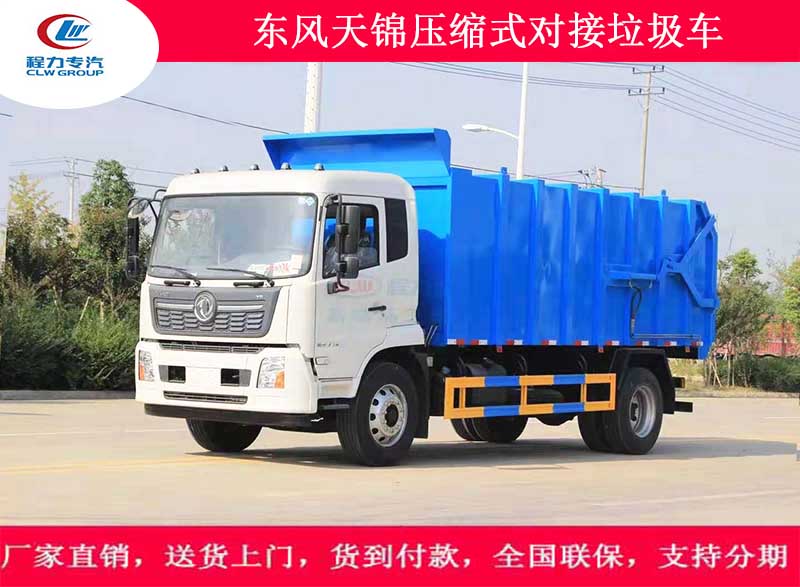

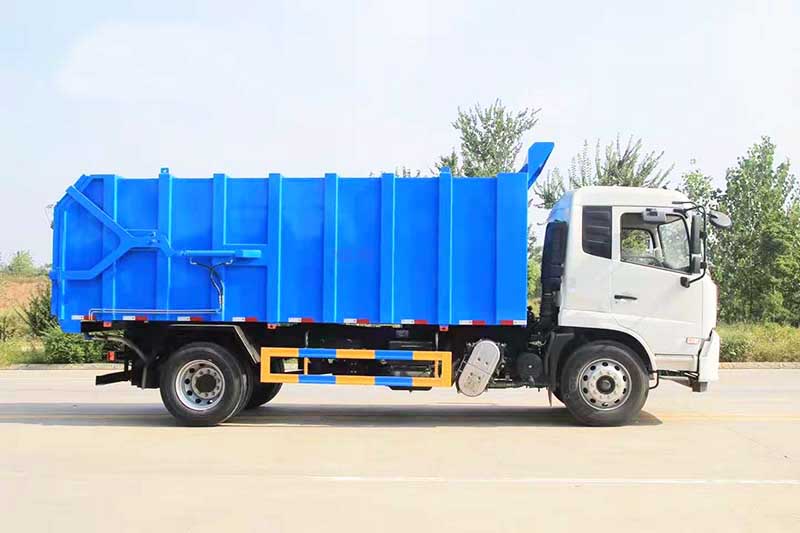

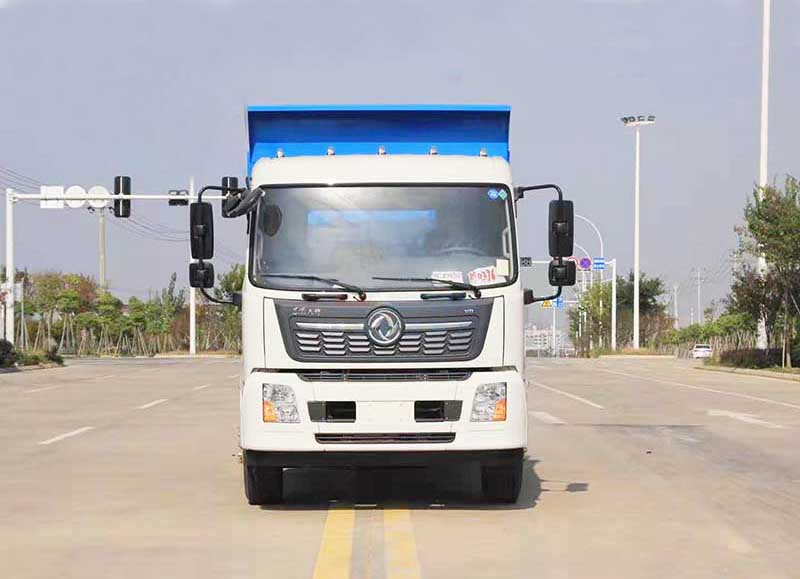

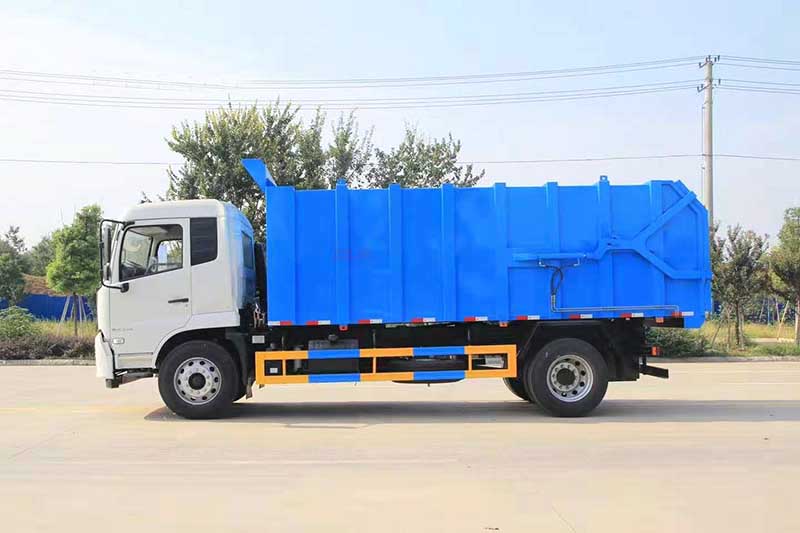

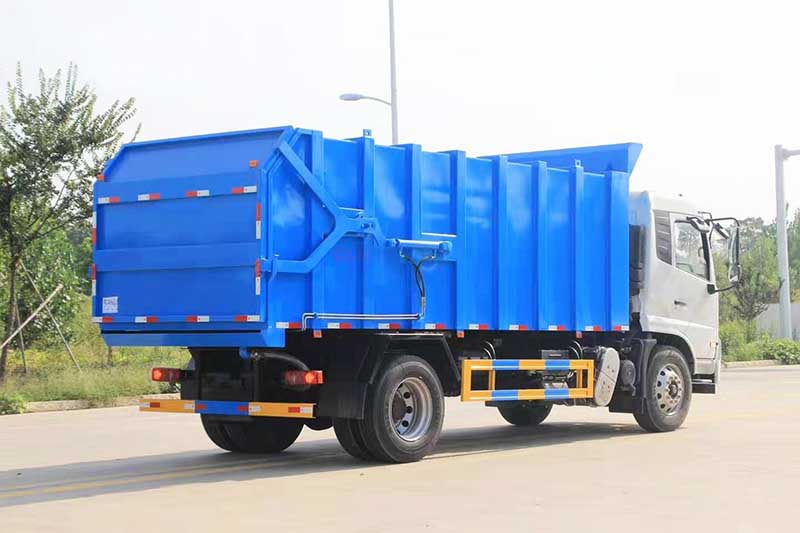

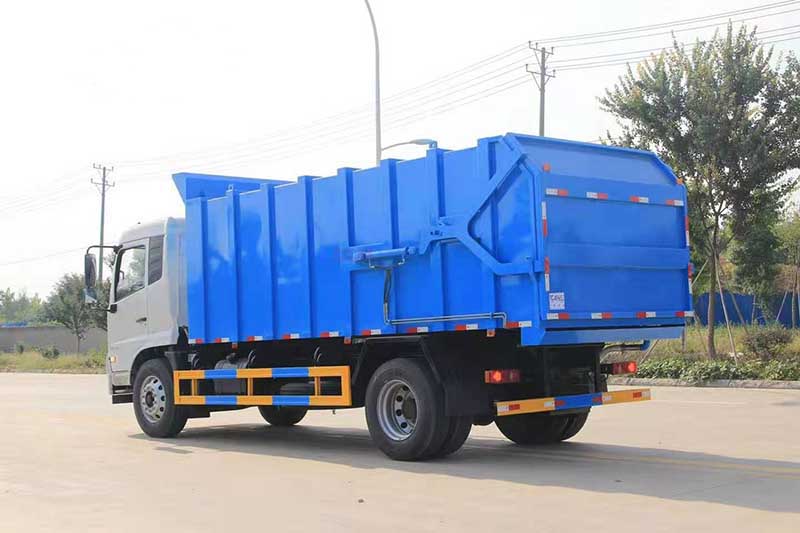

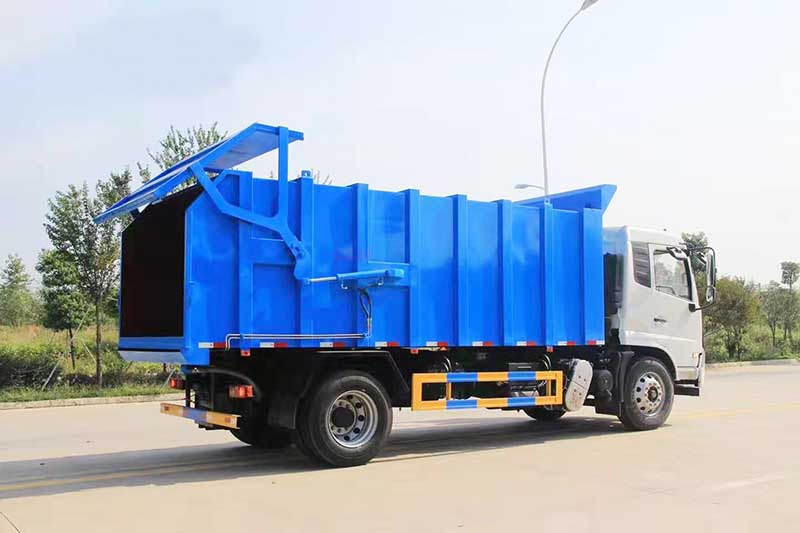

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
